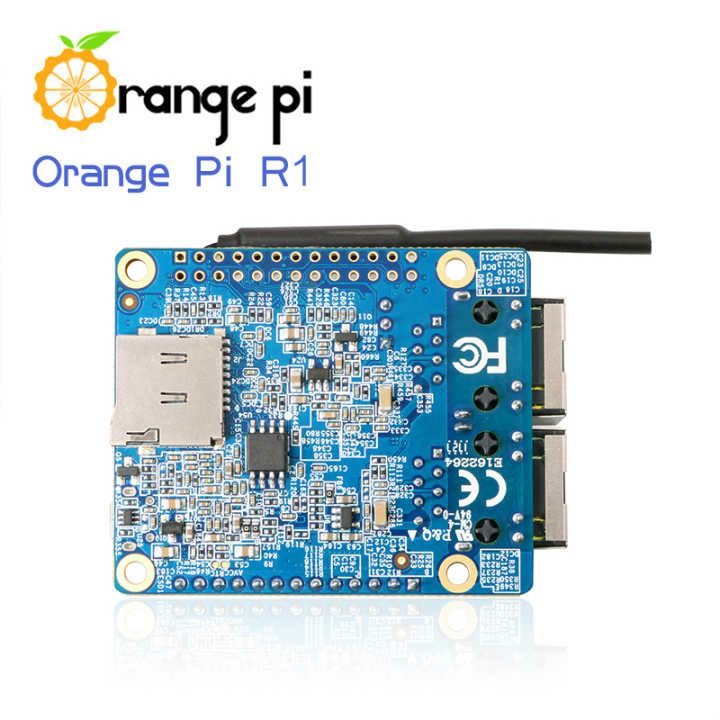

Orange Pi R1 – Tiny Board withTwo Network Interface
Introducing the new Orange Pi tiny Hacker Board – Orange Pi R1 with dimensions 60mm x 45mm that runs Linux or Android on a quad -A7 Allwinner H2 and features WiFi, USB OTG, and it provides a dual 10/100 Ethernet ports for network connectivity.
Sponsor Link
This Project is Sponsored by UTSource. UTSource is a professional electronic components supplier.
Orange Pi has come out with so many Single Board Computers focusing on IOT development. A few months ago, the revealed Orange pi 2G-IoT that have an 802.11n Wi-Fi and Bluetooth 2.1 at the same time it provides a 2G Mobile Radio for cellular connectivity.[AdSense-C]
Now they have come up with another Single Board Computer that have WiFi, USB OTG and ‘TWO’ 10/100 Ethernet ports. Behold The Orange Pi R1. It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian. It uses the AllWinner H5 SoC, and has 256MB DDR3 SDRAM.
Specifications
[AdSense-C]
| CPU | H2 Quad-core 32-bit Cortex-A7 | |
| GPU | Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 | |
| Memory (SDRAM) | 256MB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 32GB) / Spi flash(16MB) | |
| Wifi Antenne | Yes | |
| Onboard WIFI | Realtek RTL8189FTV, IEEE 802.11 b/g/n | |
| Onboard Network | 100M/10M Ethernet RJ45(Onboard Ethernet)
100M/10M Ethernet RJ45(RTL8152B) |
|
| Audio Input | No | |
| Video Outputs | Supports external board via 13pins | |
| Power Source | USB OTG can supply power | |
| GPIO(1×3) pin | UART, ground. | |
| Buttons | Power Button(SW602) | |
| Low-level peripherals | 26 Pins Header, compatible with Raspberry Pi B+
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
|
| LED | Power led & Status led | |
| Supported OS | Android4.4, Lubuntu, Debian, Armbian Image | |
Interface definition |
||
| Product size | 45 mm × 60mm | |
| Weight | 35g | |
The system doesn’t have a a DisplayPort, VGA, or HDMI port, but there is an LCD connector that you can use to hook up an external screen.
Click Here for Installation and Setup of Linux in Orange Pi R1
